KODAK Solar Off-Grid Inverter 5.6kW 48V – No longer available
R16456.61
Off-grid Grid Back-up PV inverter is a device that converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity for use in standalone, mostly off-grid systems.
Unlike grid-tied inverters that feed excess power back into the grid, off-grid inverters are designed for autonomous power systems, that provide power during grid outages and when grid is available.
Out of stock

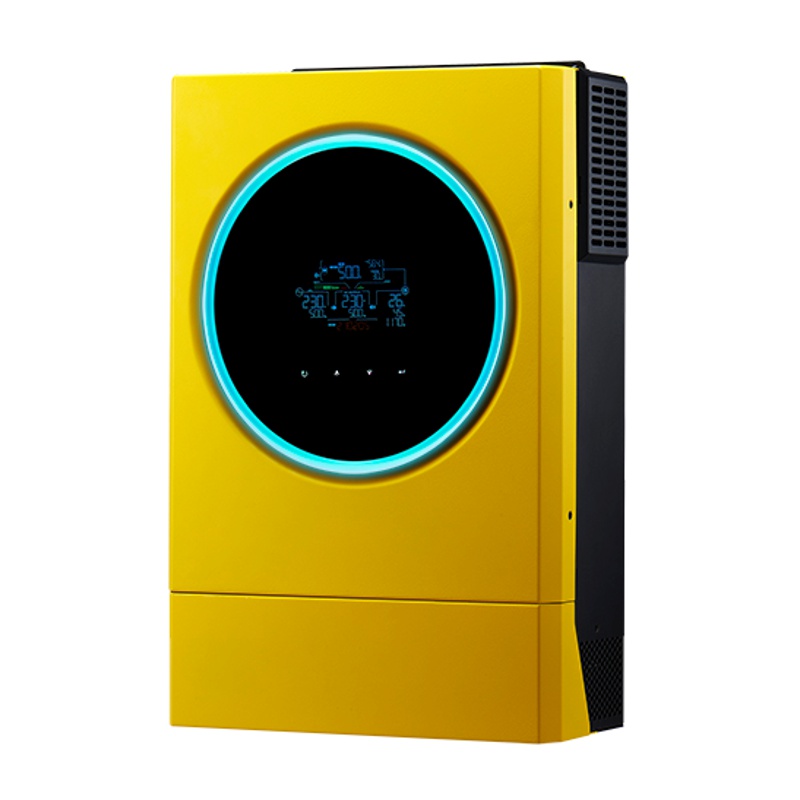

KODAK Solar Off-Grid Inverter 5.6kW 48V
- Pure sine wave MPPT solar inverter.
- Customizable status LED ring with RGB lights.
- Touchable button with 4.3" coloured LCD.
- Wide DC input range.
- Supports USB On-the-Go function.
- Data log events stored in the inverter.
- Built-in Wi-Fi for mobile monitoring (App is available).
- IICU monitoring and automations.
- Reserved communication port for BMS.
- Parallel operation with up to 9 units.
- Compatible to Generator input Auto restart while AC is recovering.
- Rated Power: 5,600 W.
- Min PPT Voltage: 120 V.
- Max PPT Voltage: 450 V.
- Max DC Power: 6,000 W.
- Max AC Power (5 Minutes): 6,160 W.
- Surge AC Power (1 Second): 11,200 W.
- Max DC Current: 27 A.
- MPPT Quantity : 1.
- PV Connector: Screw Terminal.
- Euro Efficiency: 93%.
- Transformer: None.
Documentation
To view the KODAK Brochure click HERE
To view the KODAK Datasheet click HERE
To view the KODAK Installation and User manual click HERE
