Sale!

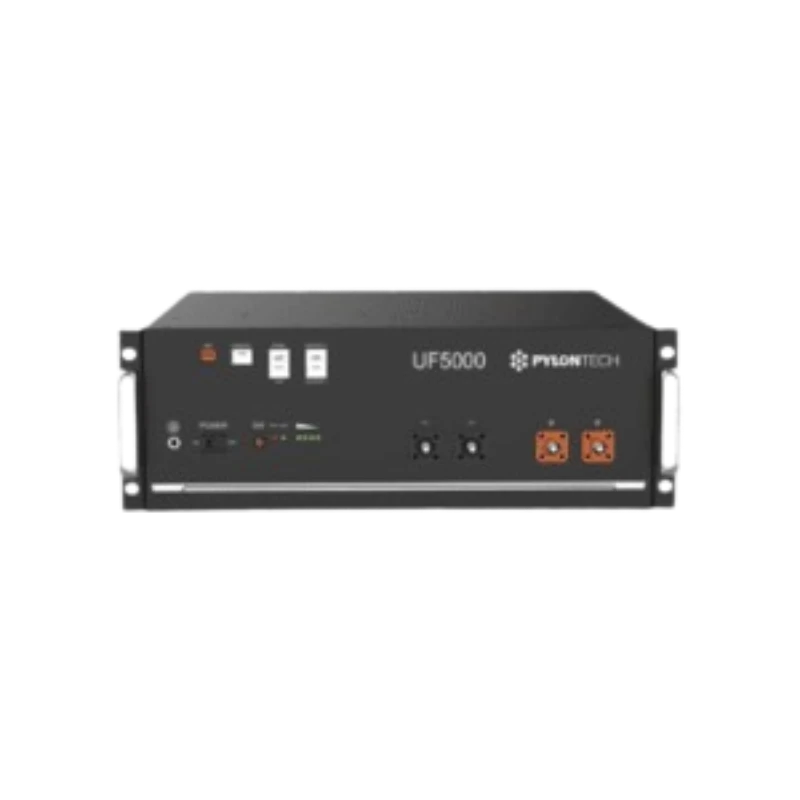

Pylon UF5000 5.12kWh Li-Ion Solar Battery 51.2V
Original price was: R19900.00.R17999.00Current price is: R17999.00.
The new UF5000 is a 51.2V, 5.12kWh, 10-year warranty, a lithium-ion battery with incredible features to provide a competitive edge in the market, developed with their own lithium iron cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.
Important Notice: The PYLON-UF5000 battery is not compatible with the PYLON-UP5000, PYLON-US3000C, or PYLON-US2000C.
Pylon UF5000 5.12kWh Li-Ion Solar Battery 51.2V
- Modular design for ease of expansion up to 20 units (a staggering 102kWh capacity)
- Higher usable capacity results in fewer battery modules being installed.
- Usable capacity 4,864Wh.
- Parallel Capability of up to 20 units.
- Allows for a large installation of up to 102kWh with no LV Hub.
- Intelligent BMS protecting battery cells.
- 95% DoD with more usable capacity.
- RS485 and CAN compatible.
- Comes with a 10-year warranty non-extendable.
- Weight: 42 kg.
- Battery Type: Lithium Ion.
- Nominal Energy: 5120 Wh.
- Depth of discharge: 95%.
- Voltage: 51.2 V.
- Continuous Discharge Rate (Normal Use): 5120 W.
- Maximum Discharge Rate (5 Minutes): 5376 W.
- Surge Discharge Rate (15 Seconds): 6195 W.
- Maximum Charge Rate (5 Minutes): 5376 W.
- C-Rating of 1C, continues discharge.
DOCUMENTATION
To view the Pylontech Datasheet click HERE
To view the Pylontech Manual click HERE
