PV MC4 connectors

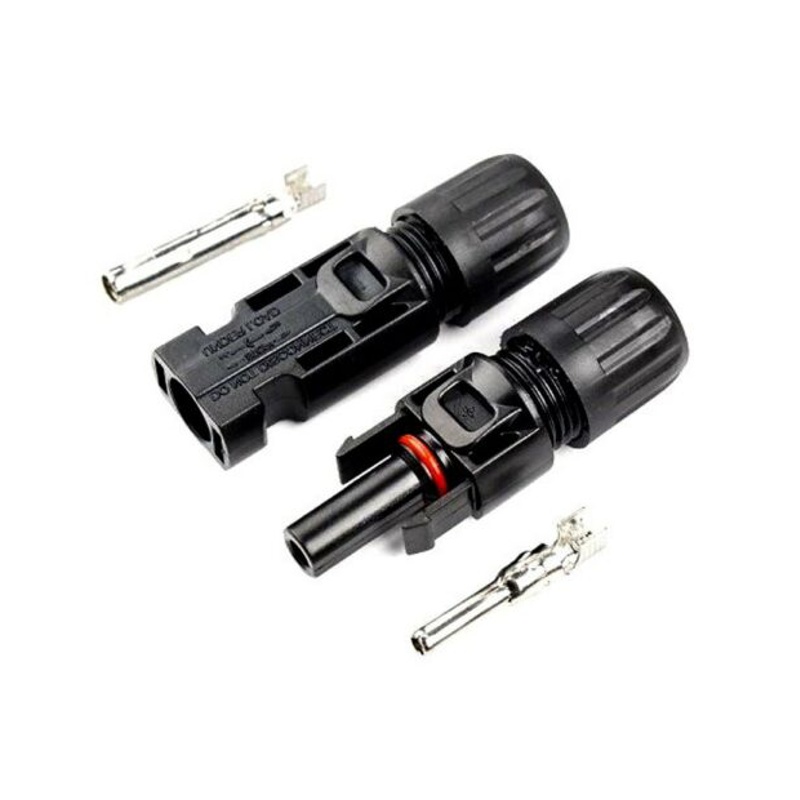

MC4 Connector set (Male & Female)

Original price was: R62.00.Current price is: R50.00.

MC4 connectors and panel receptacles offer a cost-effective, high-quality solution for low voltage DC applications up to 1500 V, 100 A and 10 mm² / 8 AWG cable.

MC4 connector twin pack (1 x Male and 1 x Female). PV snap-in lock connector.

SKU: SSStaubli272402 Categories: , , Tags: , ,

MC4 Low voltage DC connector set (m&f/m)

  • Snap-in lock
  • Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
  • Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
  • Tried and tested plug connectors, 14 years of experience in the field
  • Suitable for assembly with cross-sections of 4 and 6 mm²
  • Rated current: 39 A (for 4 and 6mm2 cable)
  • Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,0 - 6,0mm

DOCUMENTATION
To view the MC4 Datasheet click HERE
